OMP Italy Extinguishing System: CEFAL3

OMP Italy Extinguishing System: CEFAL3 – Essential Fire Safety for Motorsport

The OMP Italy Extinguishing System: CEFAL3 offers crucial fire protection for competitive motorsport environments. This electrically activated system is designed for formula cars, providing coverage for both the engine compartment and cockpit with its included control box, tubing, and nozzles. Its ultralight aluminum bottle contributes to a reduced overall weight, a critical factor in racing.

Detailed appearance of the extinguishing system

While the photos of the CEFAL3 system were not provided, based on the description, the system likely includes a compact, ultralight aluminum bottle, potentially finished in a neutral color like silver or black. The system's components would consist of various lengths and diameters of black or metallic tubing, along with nozzles for distribution of the extinguishing agent. Connectors and brackets, likely made of metal (possibly stainless steel as mentioned for the brackets), would be included for secure installation. The control box and push button would likely be black or feature branding, while the wiring harness would be a collection of insulated wires.

Comprehensive System Components

The CEFAL3 system comes complete with all necessary components for installation and operation:

• 1 Hose diam. 8 mm (CD/324/8/N)
• 1 Hose All. 5m diam. 8 mm (CD/323/N/8)
• 1 Hose All. 3m diam. 6 mm (CD/323/N/6)
• 2 Stickers (X/846)
• 1 Control Box (CD/398)
• 1 Reduction 6-8 (CD/399)
• 1 Push Button (EA/467)
• 6 Nozzles (CD/393)
• 1 Wiring Harness (X/363/CAB/CAV)
• 3 "T" connections diam. 8 mm (CD/392/N)
• 2 90° connections diam. 8 mm (CD/391/N)
• 1 90° connections diam. 6 mm (CD/391/N/6)
• 2 3-way connections diam. 6 mm (CD/390/N)

Engineered for Performance and Safety

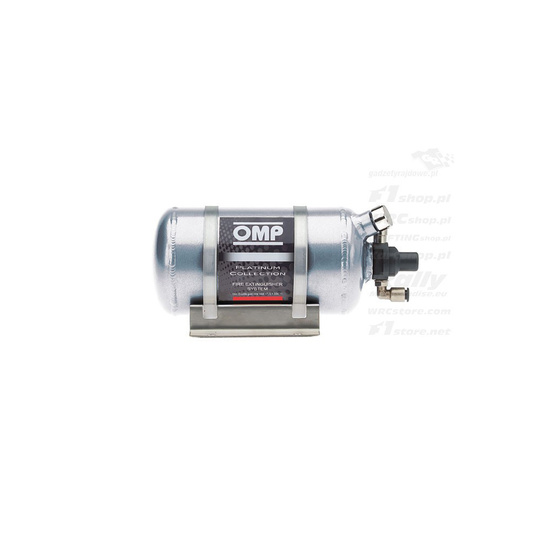

The CEFAL3 system is designed to meet the demanding requirements of motorsport. The 0.9 lt Ecolife agent within the ultralight aluminum bottle provides effective fire suppression. The compact dimensions (Diameter 100 mm, Length 194 mm) and the inclusion of stainless steel brackets and fixing clamps ensure a secure and space-efficient installation within a race car.

Why Choose the OMP CEFAL3 Extinguishing System?

• Motorsport Specific: Designed for the unique needs of formula cars.
• Lightweight Design: Ultralight aluminum bottle for minimal weight impact.
• Comprehensive Kit: Includes all necessary components for installation.
• Effective Suppression: Utilizes 0.9 lt Ecolife extinguishing agent.
• Durable Construction: Features stainless steel brackets and fixing clamps.

Enhance your race car's safety with the reliable OMP Italy Extinguishing System: CEFAL3.
